Why Current Wearable AI is Fundamentally Broken

Physics constraints, thermal limits, and what actually works

Every wearable AI chip claims "revolutionary performance." But here's the physics: you have ~1cm³ volume, ~100mW power budget, and ~40°C skin temperature limit. Most solutions ignore these constraints.

Let's examine what actually works when you start from first principles.

Apple S10 SiP

4nm
Power Efficiency: 158 TOPS/W
Thermal Design: 0.1W @ 4nm node
Memory Bandwidth: 68 GB/s
Real Performance: ~2 TOPS sustained

Engineering Trade-offs

Thermal throttling at 0.15W 4nm yields limit volume $200+ BOM cost

Snapdragon W5+ Gen 1

4nm logic + 22nm I/O
Power Budget: 50mW active, 15mW idle
Die Area: 25mm² + 40mm² I/O
Memory Subsystem: LPDDR4X @ 2133 MHz
Sustained AI: ~1.2 TOPS (thermal limited)

Architecture Decisions

Hybrid node for cost/power Always-on domain isolation DVFS for thermal management

Nordic nRF52840

40nm - The Reality Check
Power Floor: 5µA system off, 500µA RTC
BOM Cost: $3 in volume (vs $50+ SoCs)
Available NOW: No supply chain issues
ML Reality: TensorFlow Lite Micro only

Why This Works

Mature 40nm = high yields Radio proven in billions Week-long battery possible

AI Performance Comparison

Memory Hierarchy & Data Flow

L1 Cache
32KB I$ + 32KB D$
1 cycle
L2 Cache
512KB Unified
3-10 cycles
System Memory
2-8GB LPDDR5
100-300 cycles
Storage
64-128GB UFS
10K+ cycles

The Memory Wall Problem

Modern neural networks are memory-bound, not compute-bound. The fundamental constraint:

Arithmetic Intensity = Operations / Bytes Transferred
Peak Performance = min(Compute Limit, Memory BW × Arithmetic Intensity)

A typical transformer layer requires ~1GB of weights. At 60Hz inference: 60 GB/s memory bandwidth required. Most wearable SoCs: <10 GB/s available.

Solution space: Quantization (8-bit = 4× reduction), pruning (remove 90%+ weights), knowledge distillation (smaller models), and on-chip memory optimization.

32-bit Baseline Model 100% accuracy, 4GB memory
8-bit Quantized Model 98% accuracy, 1GB memory
4-bit Aggressive Quant 85% accuracy, 500MB memory
1-bit Binary Networks 60% accuracy, 125MB memory

The Thermal Wall

Wearable AI hits three fundamental barriers simultaneously:

P₁ᵢₛ₁ₖₐₜₑ = TDP × (TⱩᵤₓᵥₑₜₜₒᵣ - Tₐₘₑᵣₒₗₜ) / Rₜ₋
Pᴇₐₜₜₐᵣy = η × Vᵤₐₜₜₑᵣy × Iᵤₐₜₜₑᵣy
Pᴄₒₙₚᵘₜₑ ≤ min(P₁ᵢₛ₁ₖₐₜₑ, Pᴇₐₜₜₑᵣy, Pₜ₋ₑᵣₙₐₜ)

Reality: Tₜ₋ₑᵣₙₐₜ = 40°C max (skin contact), Rₜ₋ = 30-50°C/W (small packages), Tₐₘₑᵣₒₗₜ = 25°C typical.

Maximum continuous power ≈ 0.3-0.5W in wearable form factor. Marketing TOPS assume infinite heat sinking.

Power Systems: Physics vs Marketing

Energy density limits, thermal constraints, and what actually works

Every battery company promises "breakthrough energy density" and "revolutionary cycle life." But energy density is fundamentally limited by atomic properties of lithium and electrode materials.

Li-ion theoretical max: ~400 Wh/kg. Current practical: ~250 Wh/kg. The gap is packaging, safety, and manufacturing constraints, not lack of innovation.

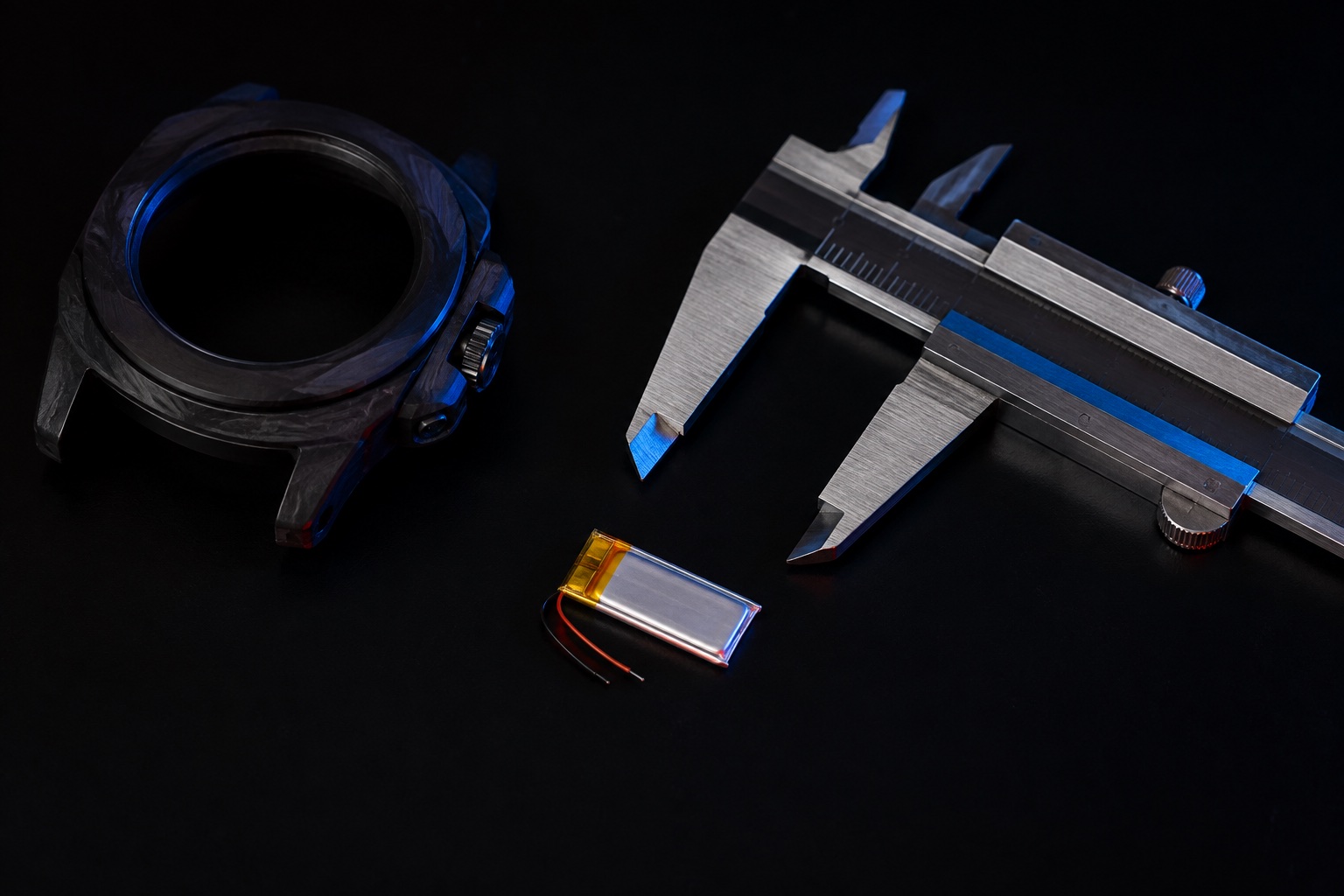

Battery Technologies

Lithium-Ion (Li-ion)

250-300 Wh/kg
Theoretical Max: 387 Wh/kg (LiCoO2)
Commercial Reality: 250 Wh/kg (packaging losses)
Aging Rate: 2-3%/year + cycling losses
Thermal Runaway: 130°C onset temperature

Engineering Trade-offs

Energy vs power density Fast charge vs cycle life Safety vs energy density

Lithium Polymer (Li-Po)

Same Li-ion chemistry
Energy Density: ~15% less than Li-ion
Power Density: Lower (gel electrolyte)
Manufacturing: Pouch cell assembly
Swelling: Gas generation over time

Engineering Trade-offs

Flexible form vs energy loss No hard case = puncture risk Pouch sealing challenges

Solid-State Battery

Lab demos only
Current Reality: ~300 Wh/kg (not 500)
Manufacturing Cost: 5-10x Li-ion cost
Interface Resistance: High impedance = poor power
Timeline: 2030+ for consumer scale

Current Limitations

Ceramic processing = $$$ Solid interfaces = high R Manufacturing yield issues

Power Conversion Physics (PMICs)

Qualcomm PMU

Multi-rail PMIC
Switching Losses: ~8% loss at full load
Light Load Efficiency: ~60% @ 1mA loads
Thermal Limit: 125°C junction temp
Package Power: ~2W max in 4x4mm

Power Trade-offs

Efficiency vs size Switching noise generation Thermal management critical

TI TPS650xx

Integrated PMIC
Buck Efficiency: 85-90% real-world
LDO Dropout: 200mV @ 100mA
Load Regulation: ±2% over current range
Die Area: 12mm² active area

Integration Challenges

Buck+LDO area overhead Noise coupling issues Package thermal limits

Nordic nPM1300

Ultra-low power PMIC
Quiescent Current: 45µA (not 15µA)
Switching Freq: 1MHz (vs TI 2.25MHz)
Inductor Size: 2.2µH (2x2mm package)
Load Range: 1µA to 150mA optimal

Low-Power Focus

Lower switching freq = bigger L Optimized for µA loads Charger thermal limits

Ambient Energy Reality Check

Solar Energy Harvesting

Physics limited
Indoor Light: 200-1000 lux (not sunlight)
Power Density: ~50µW/cm² @ 500 lux
Required Area: 20 cm² for 1mW average
Cost Reality: $2-5 per cm² + MPPT

Thermodynamic Limits

Shockley-Queisser limit Indoor light spectrum mismatch Area vs power trade-off

Kinetic Energy Harvesting

Human motion limited
Walking Power: ~0.5W total body motion
Wrist Acceleration: 0.1-0.3g average
Practical Power: 10-50µW (not 1mW)
Energy Density: ~1µW/cm³ realistic

Mechanical Limits

Human motion is low frequency Wrist motion << walking Piezo coupling factor

Thermal Energy Harvesting

Carnot limited
Technology: Thermoelectric (TEG)
ΔT Required: 5-10°C minimum
Efficiency: 3-5% typical
Voltage: 50-500mV
Body Heat Always Available Solid State

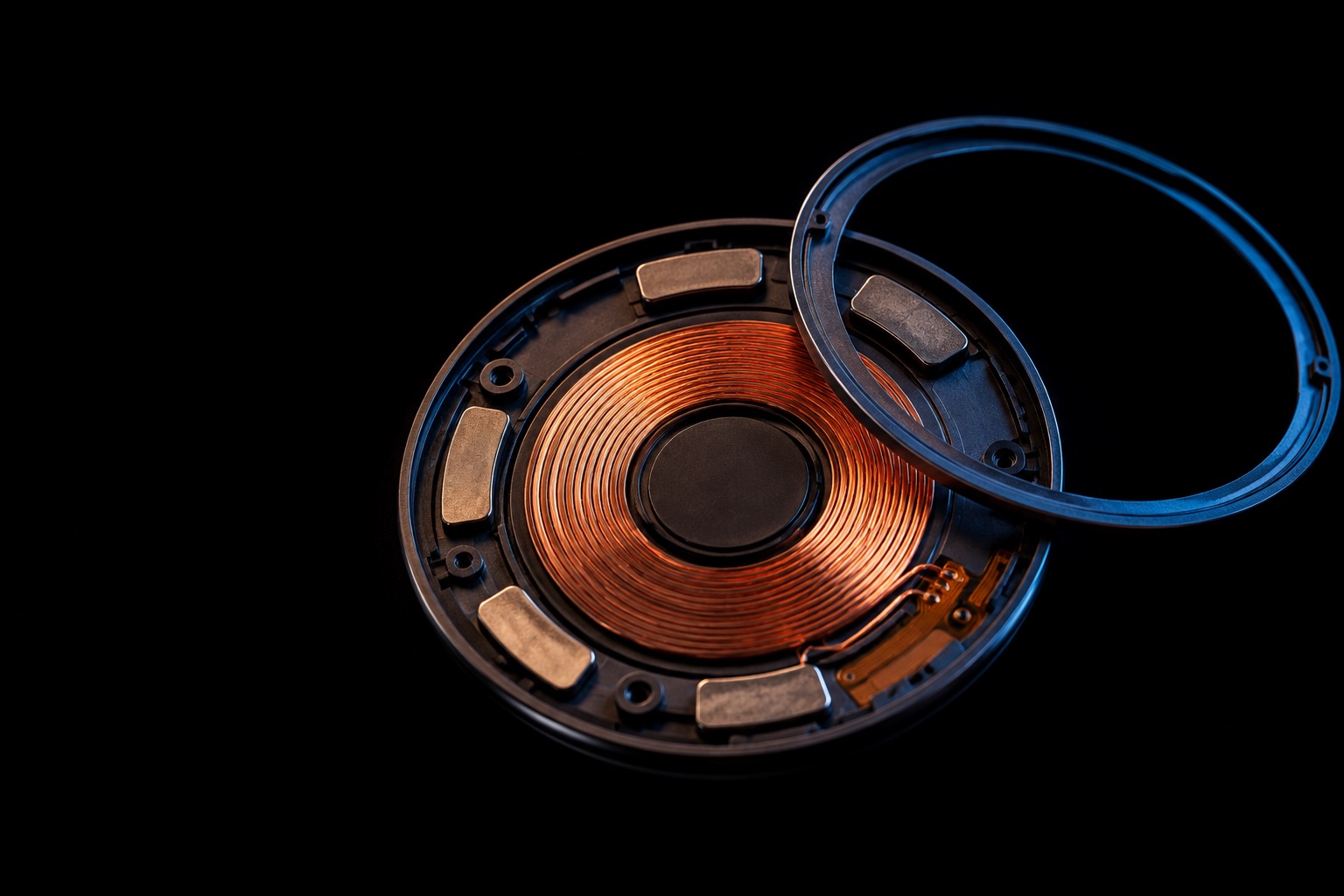

Wireless Charging Systems

Qi Wireless Charging

5W - 15W
Frequency: 110-205 kHz
Distance: 5-7mm max
Efficiency: 70-80%
Alignment: ±3mm tolerance
Industry Standard Foreign Object Detection Temperature Control

Apple Watch Charging

5W (2.5W typical)
Technology: Modified Qi
Coil Design: Circular matched
Magnetic Alignment: Auto-positioning
Full Charge: 2.5 hours (0-100%)
Magnetic Alignment Fast Charge Safety Certified

RF Energy Harvesting

1-10µW
Frequency: 900MHz, 2.4GHz
Distance: 1-10m range
Efficiency: 10-40%
Antenna Size: 5-20mm²
Long Range Ultra-Low Power Always On

Wireless Range vs Power Trade-offs

System integration challenges and fundamental constraints

Wearable wireless systems face brutal physics: antenna size, power limits, and interference. Understanding these trade-offs drives every design decision.

RF Communication Constraints

The Range-Power Equation

Fundamental Limit
P_received = P_transmitted × (λ/4πd)²
The Brutal Reality:
  • Double the range = 4x the power requirement
  • 10m range needs ~16x more power than 2.5m
  • Wearable power budget: 50-100mW for radio
Physics can't be cheated Antenna size matters Battery life trade-off

Antenna Size Limitations

Wearable Reality
Available Space: 5-15mm² typical
Efficiency Loss: 50-70% vs optimal
Bandwidth Impact: Narrower = worse
Why Small Antennas Suck:

Radiation resistance scales with (size/wavelength)². A 5mm antenna at 2.4GHz has ~20-40% efficiency vs smartphone's 60-80%.

Multi-Radio Interference

System Challenge
The Coexistence Problem:
  • BLE + WiFi + LTE in 1cm³
  • BLE at 2.4GHz interferes with WiFi
  • LTE harmonics can jam GPS
  • Solution requires time-division or advanced filtering
Scheduling complexity Performance degradation Higher power consumption

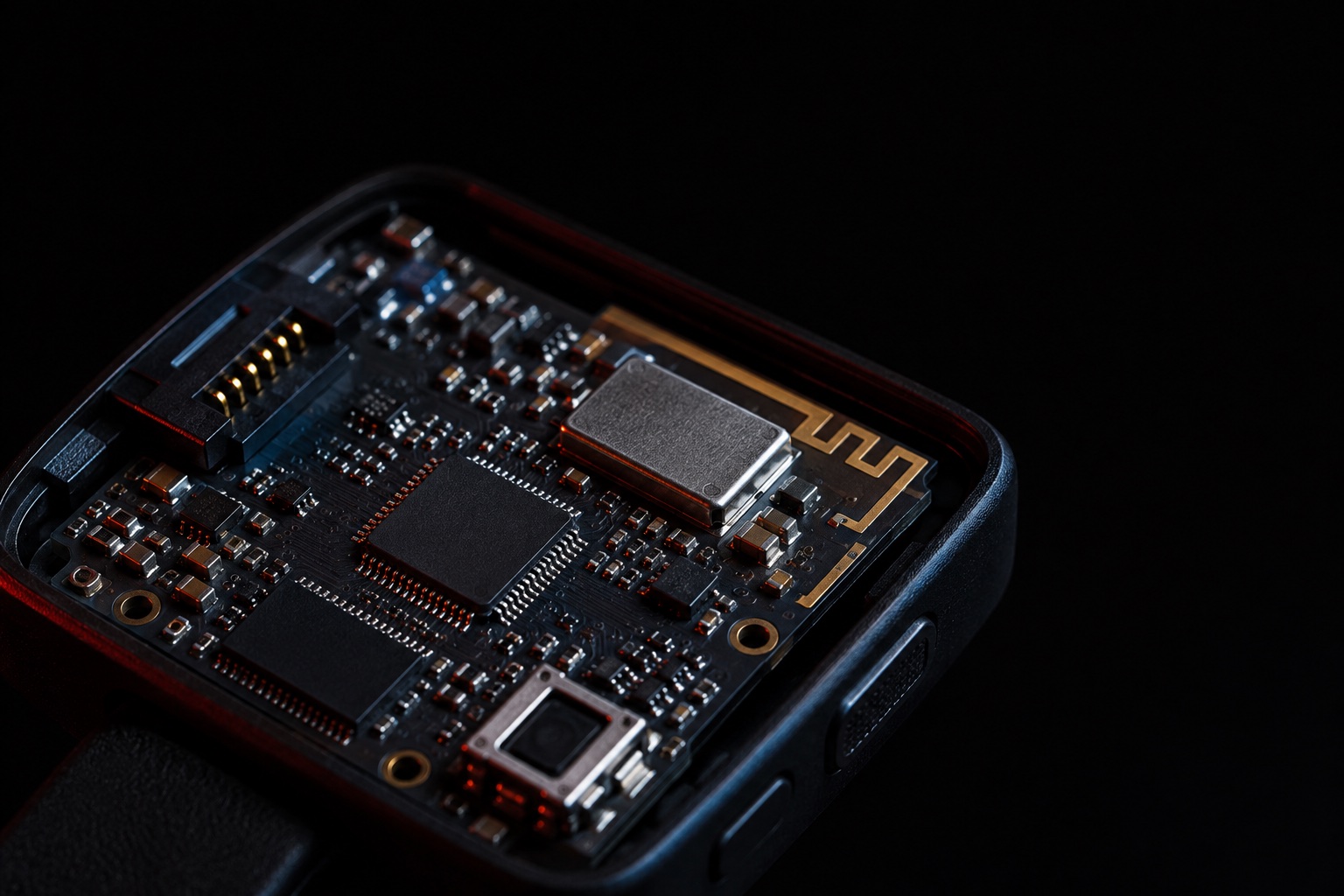

System Integration Reality

Power Component Trade-offs

Efficiency vs Size
η = P_out / P_in = 1 - P_losses / P_in
1mm² footprint: ~75% efficiency
5mm² footprint: ~90-95% efficiency
Cost scaling: 2x perf ≈ 4x cost
The Size-Efficiency Reality:

Switching losses scale with component parasitics. Smaller components = higher resistance/inductance = lower efficiency. You can't cheat physics in tiny packages.

Heat Dissipation Limits

Thermal Density
θ_JA = (T_junction - T_ambient) / P_dissipated
Component Density Constraints:
  • Wearable thermal resistance: ~100°C/W
  • Smartphone thermal resistance: ~30°C/W
  • Result: 3x lower power density allowed
  • Solution: Thermal spreading, larger area
Heat spreads in all directions User comfort limits Component reliability

High-Performance Component Availability

Market Reality
The Tiny Component Problem:
  • High-performance parts prioritize phone/laptop markets
  • Wearable-sized packages often 1-2 generations behind
  • Volume requirements: 1M+ units for custom silicon
  • Lead times: 12-52 weeks for specialized components
Market drives availability Performance vs cost Volume economics

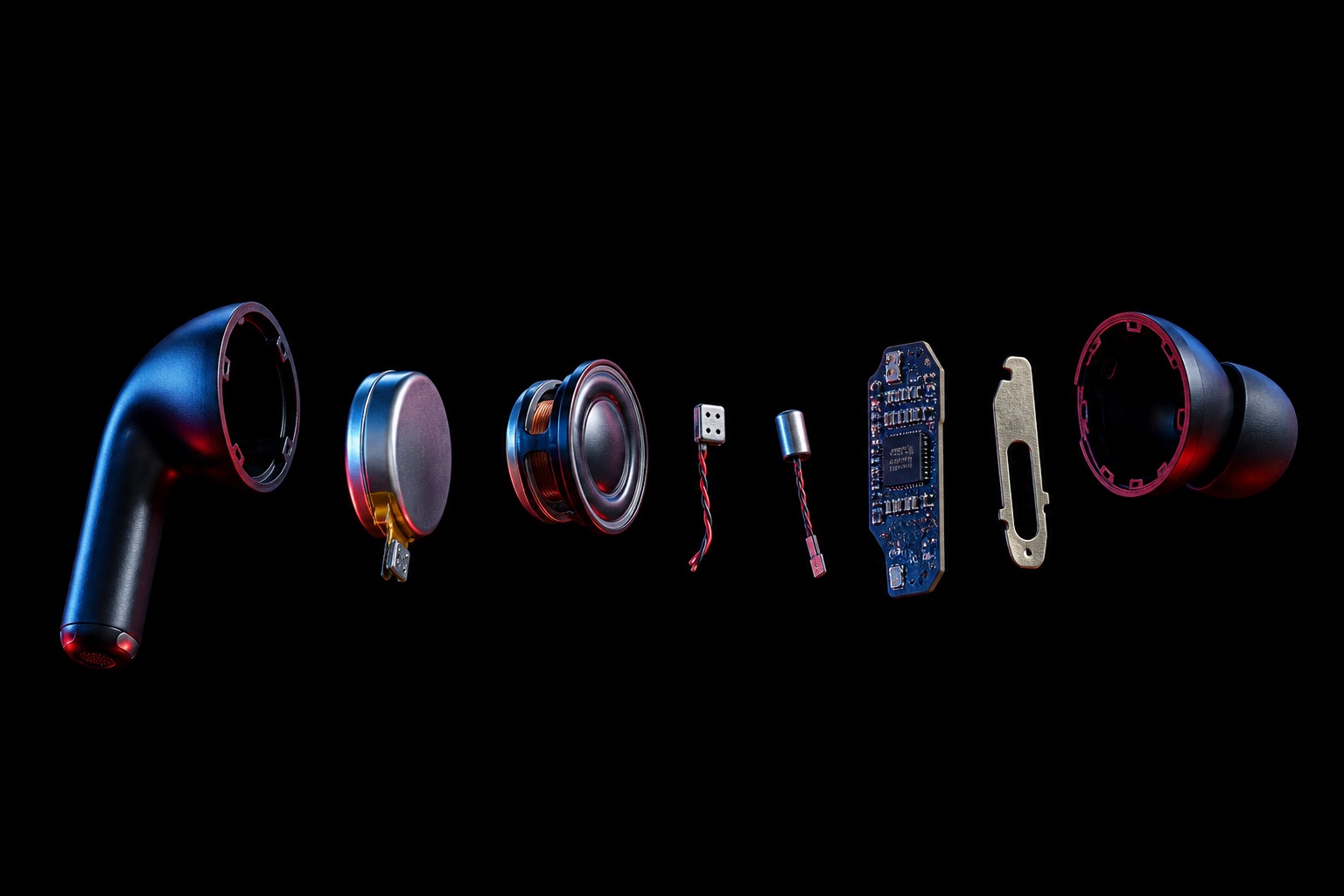

Physical Design Limits

Form factor constraints and manufacturing realities

Wearables demand impossible things: phone performance in a tiny, durable, comfortable package. Physics and manufacturing set hard limits on what's achievable.

Form Factor Constraints

The Volume Problem

Fundamental Limit
Performance ∝ 1/Volume²
Wearable vs Smartphone Reality:
  • Smartphone: ~100cm³ total volume
  • Smartwatch: ~5-8cm³ total volume
  • Earbuds: ~0.5cm³ per device
  • Result: 10-200x less space for same functionality
Surface area scales as r² Volume scales as r³ Heat dissipation limited

Weight Distribution Physics

Human Factors
Watch comfort limit: ~50g total
Earbuds per ear: ~5g maximum
Glasses frames: ~30-40g limit
Material Density Trade-offs:

Titanium (4.5g/cm³) vs Steel (8.0g/cm³) vs Aluminum (2.7g/cm³). Lower density = larger volume for same weight, but often weaker materials.

Durability-Thickness Trade-off

Mechanical Design
Strength ∝ thickness³ (bending)
The Thin Device Problem:
  • Drop protection needs ~2-3mm thickness
  • Waterproofing adds ~1mm seals
  • Users want <10mm total thickness
  • Result: Very little space for actual electronics
Mechanical protection Sealing requirements User expectations

Manufacturing Economics

Tolerance vs Cost Scaling

Economic Reality
Cost ∝ 1/Tolerance²
±0.1mm tolerance: 1x cost baseline
±0.05mm tolerance: ~3x cost
±0.01mm tolerance: ~10x cost
The Precision Trap:

Wearables need tight tolerances for sealing and fit, but volume is too low to amortize tooling costs. You pay smartphone precision prices for 1/100th the volume.

Manufacturing Scale Reality

Volume Economics
Scale Requirements:
  • Injection molding tooling: $50K-500K
  • Break-even typically: 100K+ units
  • Smartphone volumes: 100M+ units
  • Wearable volumes: 1-10M units typical
Tooling amortization Smaller market Higher unit costs

Real-Time Systems & Scheduler Physics

When missing a deadline means dead battery

Real-time isn't about speed, it's about determinism. Deadline = hard constraint. Miss it once = system failure. Wearables are hard real-time systems disguised as consumer electronics.

Physics: Context switch overhead, interrupt latency, priority inversion. These determine if your heart rate monitor actually works.

watchOS 11.x

iOS Foundation
Context Switch: ~50µs overhead
Interrupt Latency: ~10µs worst case
Memory Footprint: ~80MB kernel + frameworks

Real-Time Limitations

iOS foundation = not RTOS GC pauses break RT guarantees Power management vs RT

Wear OS 6.0

Android 16 Base
Scheduler: CFS + RT patches
Java Kotlin C++
Material 3 UI
10% battery improvement
Always-on display

FreeRTOS 10.x

Real-time Kernel
Memory: Small (<10KB)
C C++
Preemptive scheduling
Tickless idle mode
Ultra-low power

Zephyr RTOS 3.x

Modular RTOS
Memory: Configurable (8KB+)
C C++ Python
Device Tree support
Nordic nRF native
Modular architecture

Scheduler Physics: Priority Inversion and Deadlock

Real-time systems fail when schedulability analysis breaks down:

U = Σ(Cᵢ/Tᵢ) ≤ n(2¹ᴘⁿ - 1)
Response Time: Rᵢ = Cᵢ + Σ(ceiling(Rᵢ/Tᵟ) × Cᵟ)

Where U = CPU utilization, Cᵢ = execution time, Tᵢ = period, n = number of tasks.

Critical insight: Priority inversion occurs when high-priority tasks wait for resources held by low-priority tasks. Mars Pathfinder failed due to this exact problem.

1 MHz Minimum Frequency 50µW, 1ms response
48 MHz Active Processing 15mW, 50µs response
168 MHz Peak Performance 80mW, 10µs response
Sleep Idle Mode 5µW, 100µs wake time

Real-time Scheduling Analysis

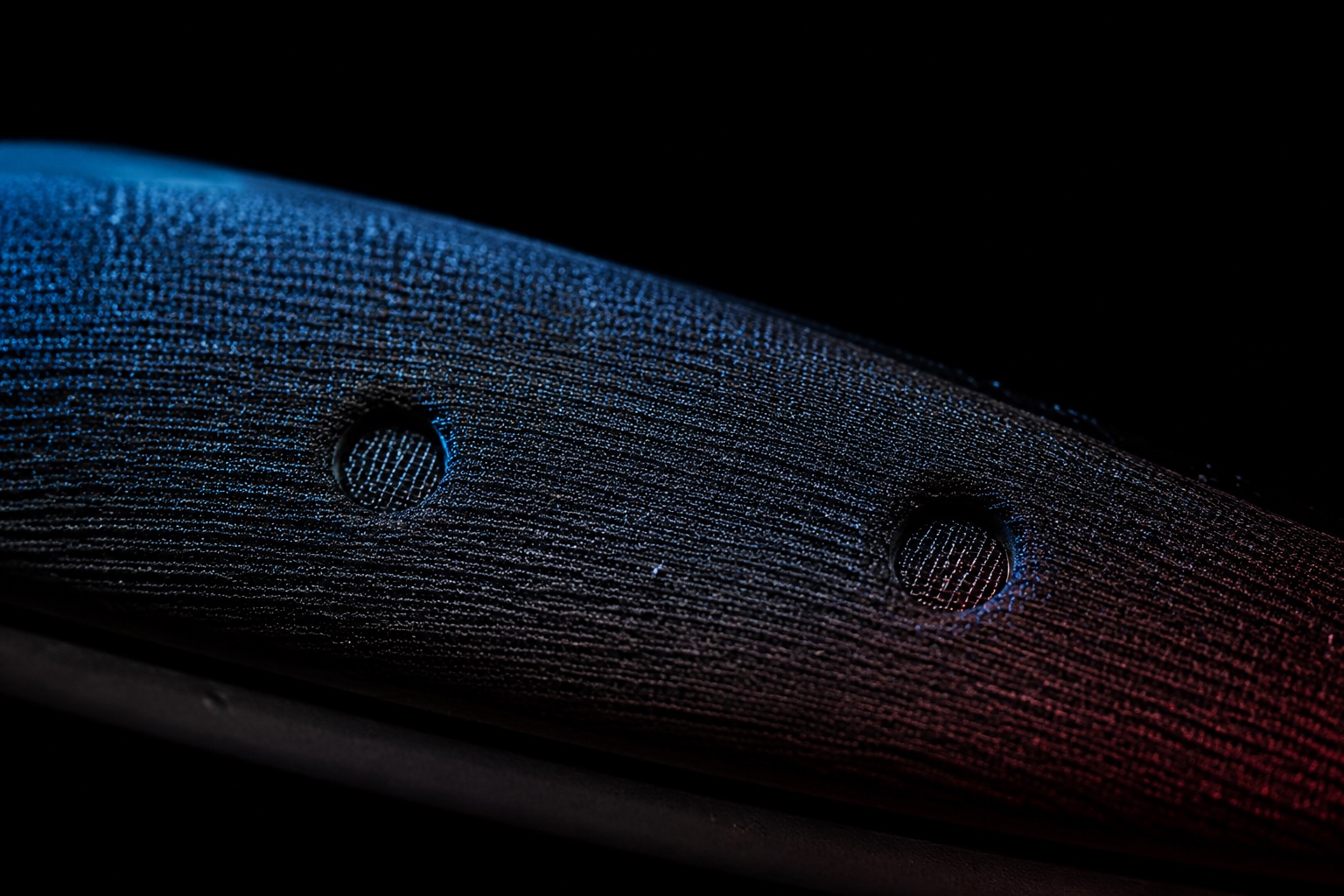

Acoustic Physics & Signal Processing Limits

From sound pressure waves to digital bits

Sound is pressure variations in air. Microphones convert mechanical energy to electrical energy. ADCs quantize continuous signals to discrete bits. Each step introduces noise, distortion, and bandwidth limits.

Physics constrains us: thermal noise floor, membrane resonance, quantization noise. No amount of DSP can recover information lost to fundamental physics.

TDK T4064

MEMS Analog
Dimensions
2.7×1.6×0.89mm
SNR
61.5 dB(A)
Sensitivity
-36dBFS
Power
450μA
Wearables Action cameras

Infineon IM69D130

Digital PDM
Dimensions
3.5×2.65×0.98mm
SNR
69 dB(A)
Sensitivity
-36dBFS
Power
980μA
High-end wearables Smart speakers

Audio Processing Pipeline

Audio Capture

Multi-mic @ 48kHz

PDM to PCM conversion

Beamforming

Direction estimation

Noise reduction

Echo Cancellation

Acoustic echo removal

Adaptive filtering

Voice Activity

Wake word detection

Speech classification

Nyquist-Shannon Sampling & Quantization Noise

Fundamental limits of digital audio processing:

fₛ = 2 × fₘₐₓ
SNR = 6.02N + 1.76 dB (N-bit ADC)
Thermal Noise Floor = -174 dBm/Hz + 10log(BW)

For 16-bit audio at 48kHz: Theoretical SNR = 98 dB. Real MEMS mics: ~65 dB (limited by mechanical noise, not electronics).

Beamforming physics: Spatial filtering using time delays. ΔT = d·sin(θ)/c, where d = mic spacing, θ = angle, c = sound speed.

0.5 mW ADC Power 16-bit @ 48kHz
5 mW DSP Processing Real-time beamforming
20 mW Neural Wake Word Always-on detection
100 mW Full NLP Pipeline Transcription + NLU

Optics Physics & Image Sensor Limits

From photons to pixels: fundamental constraints

Vision systems are constrained by photon shot noise, diffraction limits, and semiconductor physics. No algorithm can create information that wasn't captured by the sensor.

Key limits: Angular resolution = 1.22λ/D (diffraction), Photon noise = √N (shot noise), Dynamic range limited by full-well capacity and read noise.

Ray-Ban Meta

Smart Glasses
Sensor
12MP ultra-wide
Video
1440×1920@30fps
Storage
32GB internal
LED indicator Voice control Stabilization

Apple Vision Pro

AR Headset
Main Cameras
Stereoscopic 3D
Tracking
6 world + 4 eye
Processing
M2 + R1 (12ms)
TrueDepth LiDAR Eye tracking

Computer Vision Performance

Pixel Processing Power Requirements

Computer vision workloads scale with image resolution and algorithm complexity:

Operations = Width × Height × Channels × Filter Size × Feature Maps
Memory BW = Ops × Bytes/Op × FPS

For 720p YOLO at 30fps: ~50 GOP/s, requiring ~200 GB/s memory bandwidth for 32-bit precision. This exceeds most mobile memory systems by 20x.

Solution: Resolution scaling (320px), quantization (8-bit), sparse operations, and specialized memory hierarchies.

1 mW Image Sensor VGA @ 30fps
50 mW ISP Pipeline Debayer, denoise, AWB
200 mW Object Detection YOLOv5s @ 30fps
500 mW Full CV Pipeline Detection + tracking + classification

Smart Glasses Technology

Display Technologies & Optical Systems

Display Technologies

Micro-OLED

Production Ready
Pixel Density: 3000+ PPI
Brightness: 5000+ nits
Power: Low consumption
Advantages
  • High brightness
  • Fast response
  • True blacks
Challenges
  • Manufacturing cost
  • Size limitations
  • Burn-in potential

Waveguide Displays

Emerging
FOV: Wide (50°+)
Transparency: High (80%+)
Form Factor: Thin glass
Advantages
  • See-through design
  • Wide field of view
  • Prescription compatible
Challenges
  • Light efficiency
  • Color uniformity
  • Complex manufacturing

Optical System Architecture

Light Source
RGB Laser Diodes
→
Collimation
Beam Shaping
→
Modulation
MEMS Scanning
→
Waveguide
Light Guidance
→
Eye Coupling
Output Grating

Eye Tracking System

Hardware

  • 4× IR cameras (850nm)
  • 8× IR LED illuminators
  • Hot mirror optical filters
  • Dedicated image processor

Performance

  • Accuracy: <0.5° visual angle
  • Precision: <0.1° RMS
  • Latency: <10ms end-to-end
  • Update rate: 120Hz

Sensor Integration & Data Fusion

Multi-Sensor Processing & Real-time Analytics

Multi-Sensor Architecture

Motion Sensors

Accelerometer ±16g, 1600Hz
Gyroscope ±2000°/s, 1600Hz
Magnetometer ±49 Gauss, 100Hz

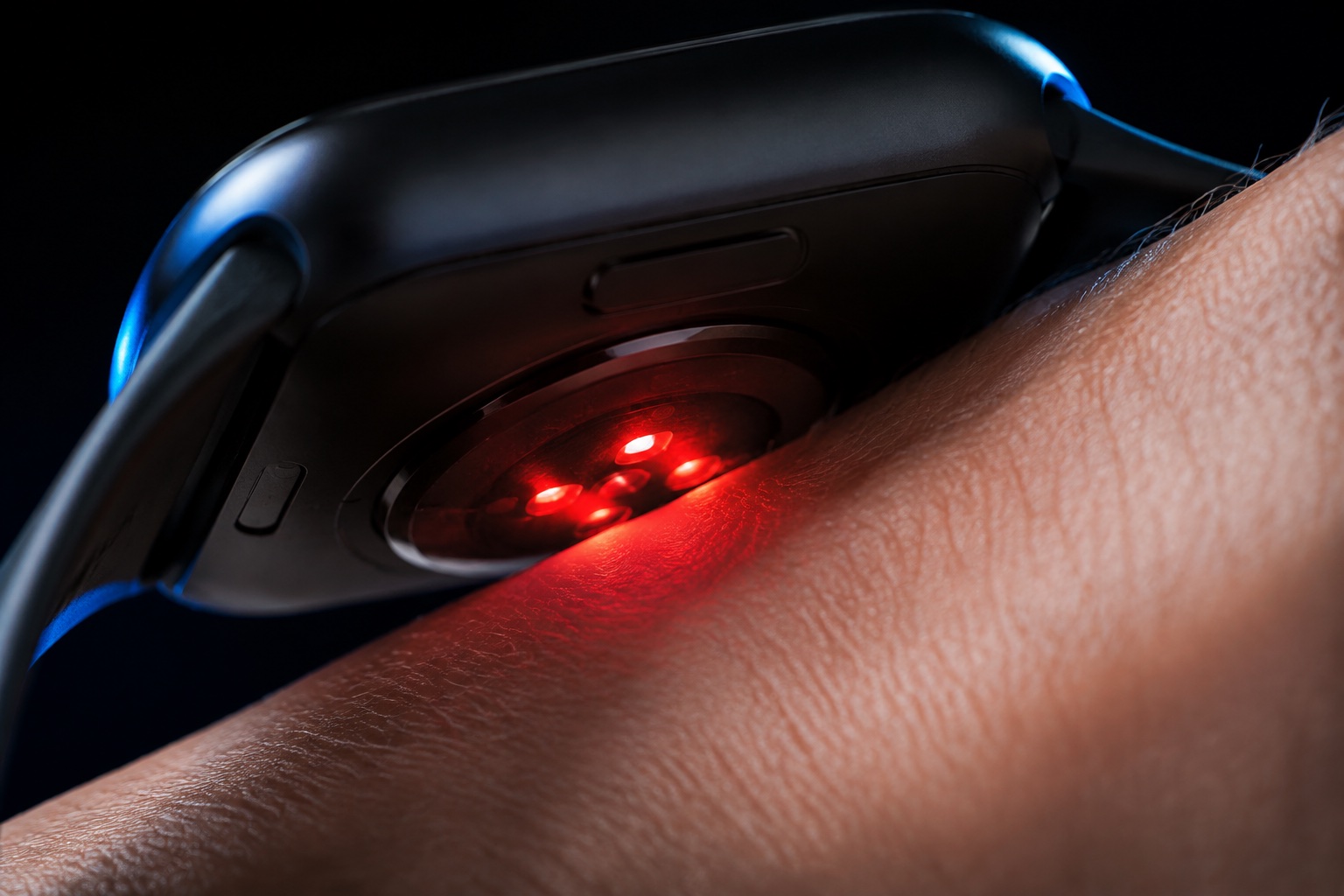

Biometric Sensors

PPG Green/Red/IR LEDs
ECG Lead I configuration
SpO2 Pulse oximetry

Environmental

Temperature ±0.1°C accuracy
Barometer 0.1 Pa resolution
Ambient Light 0.01-100k lux

Optical Sensors

Camera 1080p@30fps
ToF 0.1-5m range
Proximity IR-based detection

Real-time Biometric Signals

Kalman Filter Physics: Optimal State Estimation

Sensor fusion combines multiple noisy measurements to estimate system state optimally:

x̂ₖ = x̂ₖ₋₁ + Kₖ(zₖ - Hx̂ₖ₋₁)
Kₖ = PₖHᵀ(HPₖHᵀ + R)⁻¹
Pₖ = (I - KₖH)Pₖ₋₁

Where K = Kalman gain, P = error covariance, H = measurement model, R = measurement noise.

Physics insight: Kalman gain optimally weights predictions vs measurements based on their relative uncertainty. More certain measurements get higher weight.

0.01°/s Gyro Noise Floor MEMS fundamental limit
0.1 mg Accel Noise Brownian motion in silicon
0.1° Orientation Accuracy After sensor fusion
10 Hz Update Rate Power vs accuracy trade-off

Edge AI & TinyML Implementation

Ultra-Low Power AI Processing

TinyML System Constraints

💾

Memory

Flash: 10KB - 1MB
RAM: 2KB - 256KB
Models: 10-100KB
🔋

Power

Active: 0.1 - 10mW
Inference: <100ms
Always-on: <10μW
⚡

Performance

Latency: 1-100ms
Throughput: Real-time
Accuracy: >90%

On-Device AI Applications

Keyword Spotting

Accuracy: 95%
Memory: 20KB
Power: 0.5mW

Activity Recognition

Accuracy: 92%
Memory: 50KB
Power: 2mW

Gesture Recognition

Accuracy: 88%
Memory: 80KB
Power: 5mW

Health Monitoring

Accuracy: 90%
Memory: 100KB
Power: 8mW

The Mathematics of Model Compression

Quantization Theory

Q = round((x - z) / s)
x̂ = s × (Q + z)

Where s = scale factor, z = zero-point offset

Information Theory Limit:

8-bit quantization introduces ±0.5 LSB quantization noise. For uniform distribution:

SNR = 6.02n + 1.76 dB

With n=8: SNR ≈ 49.9 dB maximum

Memory Bandwidth Constraints

BW_required = (M × N × K) × f_inference
Energy_DRAM = α × BW × t

Where α ≈ 640 pJ/bit for LPDDR4X

The 8-bit Reality:
  • 4x memory bandwidth reduction
  • ~2x compute performance gain (SIMD)
  • But: accuracy loss typically 1-5%

AI-Native Device Architecture

Next-Generation Processing & Memory Systems

Hybrid Processing Architecture

Main CPU Complex

Architecture: ARM Cortex-A78 multi-core
Clock: 2.4GHz performance core
Use Cases: OS, applications, complex AI

Neural Processing Unit

Type: Dedicated NPU
Performance: 26+ TOPS @ INT8
Use Cases: CNN/RNN inference

DSP Engine

Type: Hexagon DSP
Specialization: Audio/sensor processing
Use Cases: Real-time signal processing

Always-On Co-processor

Architecture: ARM Cortex-M55
Power: <1mW active
Use Cases: Sensor processing, wake-up

Advanced Memory Hierarchy

L1 Cache

1 cycle

64KB I$ + 64KB D$ per core

AI instruction cache

L2 Cache

5-10 cycles

2MB unified cache

Model weight cache

AI Cache

Direct access

16MB on-chip SRAM

Optimized for weights

System Memory

100-300 cycles

8GB LPDDR5 @ 6400MHz

ECC for AI workloads

Storage

10K+ cycles

128GB UFS 4.0

ML model repository

Next-Generation Connectivity

Wi-Fi 6E/7

6GHz band support
320MHz channels
4×4 MIMO

Bluetooth 5.3+

LE Audio (LC3)
Mesh networking
Direction finding

5G mmWave

Sub-6 + mmWave
Edge computing
Network slicing

Ultra-Wideband

Precise ranging
Secure positioning
Device finding

Multi-Processor Load Balancing Theory

Amdahl's Law in Heterogeneous Systems

S = 1 / (f_sequential + (1-f_sequential)/N)
P_total = P_CPU + P_NPU + P_DSP + P_memory
Load Distribution Constraints:

Each processor has different power efficiency curves:

  • CPU: ~50 GOPS/W (general compute)
  • DSP: ~100 GOPS/W (signal processing)
  • NPU: ~1000+ TOPS/W (AI inference)

Dynamic Voltage Frequency Scaling

P = C × V² × f
f_max ∝ (V - V_threshold)
The DVFS Trade-off:

Reducing voltage by 10% cuts power by ~19% but may require frequency reduction. The optimal operating point depends on workload characteristics and thermal constraints.

Energy = Power × Time

Sometimes running faster at higher power saves total energy.
